DC/DC CONVERTER
UNREGULATED TYPE
UP-F SERIES
OUTPUT SPECIFICATIONS
|
GENERAL SPECIFICATIONS |
||||
|---|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Isolation Resistance |
109 ohms min |
|
|
Storage Temperature |
-55oC to +125oC |
Isolation Capacitance |
80pF max |
|
|
Humidity |
95% max |
Switching Frequency |
50 KHz min |
|
|
Cooling |
Free-Air Convection |
MTBF |
>2,000,000 Hours at 25oC |
|
|
Efficiency |
70%-83% |
Case Material |
Non-Conductive Plastic |
|
|
Isolation Voltage |
|
Conducted Emissions |
EN55022 Class A |
|
|
|
Single/Dual |
1000-3000 VDC min |
Radiated Emissions |
EN55022 Class A |
|
Mechanical Characteristics |
|
|---|---|
|
Length:19.6mm |
Height: 10.2mm |
|
Width: 6.1/7.1mm |
Weight: 2.1g Typ |
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
+/-10% max |
Ripple & Noise(20MHz BW) |
100mVp-p max |
|
Input Filter |
Capacitor Typ |
Line Regulation |
+/-1.2% max |
|
Input Reflected Ripple Current |
50mAp-p max |
Load Regulation |
+/-8% max |
|
Fuse Rated |
2A |
Minimum Load |
10% of Full Load |
|
Voltage Setpoint Accuracy |
+/-2% max |
Short Circuit Protection |
Momentary |
|
Temperature Coefficient |
+/-0.05%/oC |
Transient Response |
100uS max |
|
1W DUAL OUTPUT 3000VDC Isolation |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE(DC) |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION |
CASE NUMBER |
|
|
FULL LOAD |
NO LOAD |
|||||||
|
UPD-0505F-3K |
5 |
+/-5 |
+/-100 |
274 |
21 |
73 |
3000 |
B |
|
UPD-0512F-3K |
5 |
+/-12 |
+/-42 |
253 |
28 |
79 |
3000 |
B |
|
UPD-0515F-3K |
5 |
+/-15 |
+/-34 |
253 |
28 |
79 |
3000 |
B |
|
UPD-1205F-3K |
12 |
+/-5 |
+/-100 |
112 |
11 |
74 |
3000 |
B |
|
UPD-1212F-3K |
12 |
+/-12 |
+/-42 |
101 |
10 |
83 |
3000 |
B |
|
UPD-1215F-3K |
12 |
+/-15 |
+/-34 |
101 |
10 |
83 |
3000 |
B |
|
UPD-2405F-3K |
24 |
+/-5 |
+/-100 |
57 |
9 |
73 |
3000 |
D |
|
UPD-2412F-3K |
24 |
+/-12 |
+/-42 |
54 |
8 |
77 |
3000 |
D |
|
UPD-2415F-3K |
24 |
+/-15 |
+/-34 |
52 |
7 |
80 |
3000 |
D |
|
1W DUAL OUTPUT 1000VDC Isolation |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE(DC) |
OUTPUT VOLTAGE(DC) |
OUTPUT CURRENT(mA) |
INPUT CURRENT(mA) |
EFF |
ISOLATION |
CASE NUMBER |
|
|
FULL LOAD |
NO LOAD |
|||||||
|
UPD-0505(A or B)F |
5 |
+/-5 |
+/-100 |
278 |
21 |
72 |
1000 |
A or B |
|
UPD-0512(A or B)F |
5 |
+/-12 |
+/-42 |
253 |
28 |
79 |
1000 |
A or B |
|
UPD-0515(A or B)F |
5 |
+/-15 |
+/-34 |
260 |
28 |
77 |
1000 |
A or B |
|
UPD-1205(A or B)F |
12 |
+/-5 |
+/-100 |
112 |
11 |
74 |
1000 |
A or B |
|
UPD-1212(A or B)F |
12 |
+/-12 |
+/-42 |
105 |
13 |
79 |
1000 |
A or B |
|
UPD-1215(A or B)F |
12 |
+/-15 |
+/-34 |
101 |
10 |
83 |
1000 |
A or B |
|
UPD-2405CF |
24 |
+/-5 |
+/-100 |
57 |
9 |
73 |
1000 |
C |
|
UPD-2412CF |
24 |
+/-12 |
+/-42 |
54 |
8 |
77 |
1000 |
C |
|
UPD-2415CF |
24 |
+/-15 |
+/-34 |
52 |
7 |
80 |
1000 |
C |
|
1W SINGLE OUTPUT 1000VDC Isolation |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE(DC) |
OUTPUT VOLTAGE(DC) |
OUTPUT CURRENT(mA) |
INPUT CURRENT(mA) |
EFF |
ISOLATION |
CASE NUMBER |
|
|
FULL LOAD |
NO LOAD |
|||||||
|
UPS-0503.3(A or B)F |
5 |
3.3 |
300 |
274 |
21 |
73 |
1000 |
A or B |
|
UPS-0505(A or B)F |
5 |
5 |
200 |
283 |
21 |
71 |
1000 |
A or B |
|
UPS-0509(A or B)F |
5 |
9 |
111 |
257 |
25 |
78 |
1000 |
A or B |
|
UPS-0512(A or B)F |
5 |
12 |
84 |
253 |
26 |
79 |
1000 |
A or B |
|
UPS-0515(A or B)F |
5 |
15 |
67 |
253 |
28 |
79 |
1000 |
A or B |
|
UPS-0909(A or B)F |
9 |
9 |
111 |
148 |
25 |
75 |
1000 |
A or B |
|
UPS-1203.3(A or B)F |
12 |
3.3 |
300 |
112 |
11 |
74 |
1000 |
A or B |
|
UPS-1205(A or B)F |
12 |
5 |
200 |
112 |
11 |
74 |
1000 |
A or B |
|
UPS-1209(A or B)F |
12 |
9 |
111 |
107 |
11 |
78 |
1000 |
A or B |
|
UPS-1212(A or B)F |
12 |
12 |
84 |
102 |
10 |
82 |
1000 |
A or B |
|
UPS-1215(A or B)F |
12 |
15 |
67 |
102 |
12 |
82 |
1000 |
A or B |
|
UPS-2403.3CF |
24 |
3.3 |
300 |
57 |
9 |
73 |
1000 |
C |
|
UPS-2405CF |
24 |
5 |
200 |
57 |
9 |
73 |
1000 |
C |
|
UPS-2409CF |
24 |
9 |
111 |
56 |
8 |
75 |
1000 |
C |
|
UPS-2412CF |
24 |
12 |
84 |
54 |
8 |
77 |
1000 |
C |
|
UPS-2415CF |
24 |
15 |
67 |
52 |
7 |
80 |
1000 |
C |
|
UPS-2424CF |
24 |
24 |
42 |
54 |
8 |
77 |
1000 |
C |

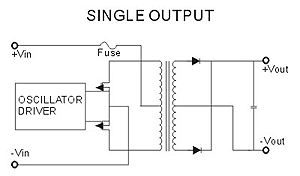

SIMPLIFIED SCHEMATIC

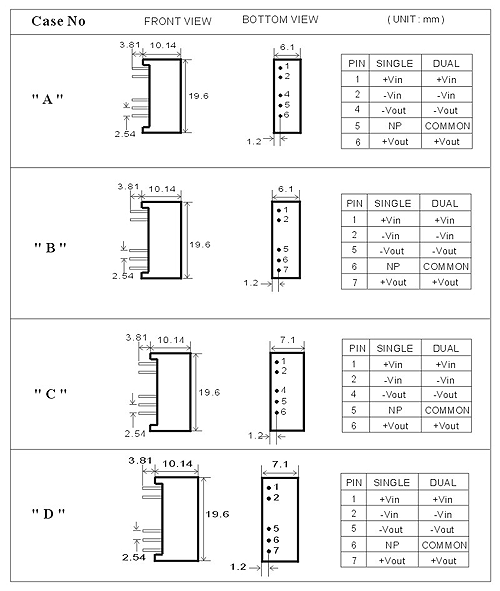

MECHANICAL DIMENSIONS &

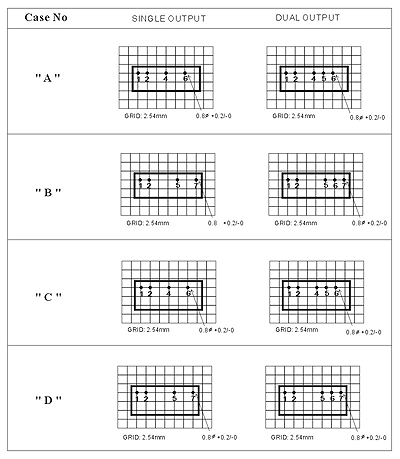

RECOMMENDED FOOTPRINT DETAILS
|
1W SINGLE OUTPUT 3000VDC Isolation |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE (DC) |
OUTPUT VOLTAGE (DC) |
OUTPUT CURRENT (mA) |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
CASE NUMBER |
|
|
FULL LOAD |
NO LOAD |
|||||||
|
UPS-0503.3F-3K |
5 |
3.3 |
300 |
274 |
21 |
73 |
3000 |
B |
|
UPS-0505F-3K |
5 |
5 |
200 |
283 |
21 |
71 |
3000 |
B |
|
UPS-0509F-3K |
5 |
9 |
111 |
257 |
25 |
78 |
3000 |
B |
|
UPS-0512F-3K |
5 |
12 |
84 |
255 |
28 |
78 |
3000 |
B |
|
UPS-0515F-3K |
5 |
15 |
67 |
253 |
28 |
79 |
3000 |
B |
|
UPS-1203.3F-3K |
12 |
3.3 |
300 |
112 |
11 |
74 |
3000 |
B |
|
UPS-1205F-3K |
12 |
5 |
200 |
112 |
11 |
74 |
3000 |
B |
|
UPS-1209F-3K |
12 |
9 |
111 |
107 |
11 |
78 |
3000 |
B |
|
UPS-1212F-3K |
12 |
12 |
84 |
102 |
10 |
82 |
3000 |
B |
|
UPS-1215F-3K |
12 |
15 |
67 |
103 |
11 |
81 |
3000 |
B |
|
UPS-2403.3F-3K |
24 |
3.3 |
300 |
57 |
9 |
73 |
3000 |
D |
|
UPS-2405F-3K |
24 |
5 |
200 |
57 |
9 |
73 |
3000 |
D |
|
UPS-2409F-3K |
24 |
9 |
111 |
56 |
8 |
75 |
3000 |
D |
|
UPS-2412F-3K |
24 |
12 |
84 |
54 |
8 |
77 |
3000 |
D |
|
UPS-2415F-3K |
24 |
15 |
67 |
52 |
7 |
80 |
3000 |
D |
 |
 |
 |
 |
 |
 |
