GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
10 to +40oC |
Operating Humidity |
0 to 85% RH |
|
Storage Temperatures |
-20 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
MTBF |
||
|
Hi-Pot |
3000V AC |
MTBF |
50,000Hours at 25oC |
EMISSSION |
SAFETY |
||
|
EMI/EMC |
FCC |
Safety Approvals |
UL/CUL/GS/CCC/ |
|
Safety Compliant |
UL 60950/EN 60950/ |
||
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input |
Output |
||
|
Input Voltage Range |
90-264V AC |
Output Voltage |
12-15-19-24V DC |
|
Input Frequency |
47-63Hz |
Output Current |
10A(120VA max) |
|
Input Current |
2A(max) |
Output Tolerance |
5% |
|
|
|
Ripple & Noise |
1%p-p max |
|
|
|
Efficiency |
>75% |
OUTPUT SPECIFICATIONS

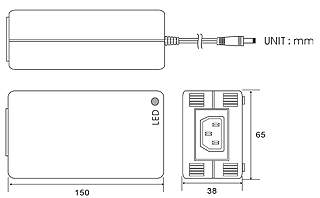

SERIES NO. : IEC120
SWITCHING ADAPTOR
DESKTOP-INLET SOCKET
120 SERIES
|
PART NO. |
OUTPUT |
|
|
VOLT |
CURRENT(max) |
|
|
IEC120-12010000 |
12V |
10A |
|
IEC120-1508000 |
15V |
8A |
|
IEC120-1906310 |
19V |
6.31A |
|
IEC120-2405000 |
24V |
5A |
 |
 |
 |
 |
 |
 |
