LINEAR ADAPTOR
DESKTOP - DUAL OUTPUT

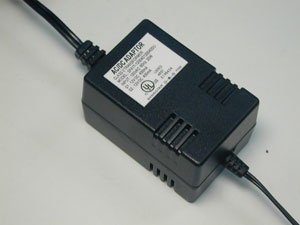

EI 41 AC TO DC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz
|
ELECTRICAL SPECIFICATION |
|||
|---|---|---|---|
|
INPUT |
OUTPUT |
||
|
Input Voltage |
120VAC |
Output Voltage |
S1:1-12V DC, S2:1-12V DC |
|
Input Frequency |
60Hz |
Output Tolerance (Load) |
5% |
|
|
|
Output Current |
S1:0.1-0.8A, S2:0.1-0.8A |
|
|
|
Output Watt |
11.7VA max |
|
GENERAL SPECIFICATION |
|||
|---|---|---|---|
|
Temperatures |
Humidity |
||
|
Operating Temperatures |
-10 to +30oC |
Operating Humidity |
10 to 90% RH |
|
Storage Temperatures |
-10 to +70oC |
Storage Humidity |
5 to 95% RH |
|
Hi-Pot Test |
Safety |
Compliance With |
|
|
Primary to Core |
1800VAC, one second |
UL/CUL |
UL 1310/ |
|
Primary to Secondary |
1800VAC, one second |
||
OUTPUT SPECIFICATION
|
AC to DC (DUAL Output) Adaptor |
||||||
|---|---|---|---|---|---|---|
|
The options of the dual output is limited to each output value |
||||||
|
Maximum Value |
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
||
|
Volt(max) |
Amp(max) |
Volt(max) |
Amp(max) |
VA (max) |
||
|
x = a |
SF41T-aaaYYaaaYYDU |
3V DC |
0.8A |
3V DC |
0.8A |
4.8VA |
|
x = b |
SF41T-bbbYYbbbYYDU |
4V DC |
0.7A |
4V DC |
0.7A |
5.6VA |
|
x = c |
SF41T-cccYYcccYYDU |
5V DC |
0.6A |
5V DC |
0.6A |
6VA |
|
x = d |
SF41T-dddYYdddYYDU |
7V DC |
0.5A |
7V DC |
0.5A |
7VA |
|
x = e |
SF41T-eeeYYeeeYYDU |
9V DC |
0.4A |
9V DC |
0.4A |
7.2VA |
|
x = f |
SF41T-fffYYfffYYDU |
12V DC |
0.3A |
12V DC |
0.3A |
7.8VA |
|
x = g |
SF41T-gggYYgggYYDU |
12V DC |
0.2A |
12V DC |
0.6A |
9.6VA |
|
|
||||||
|
Model No |
Output (Secondary 1) |
Output (Secondary 2) |
S1 + S2 |
|||
|
Volt |
Amp |
Volt |
Amp |
VA |
||
|
SF41T-0150803008DU |
1.5V DC |
0.8A |
3V DC |
0.8A |
3.6VA |
|
|
SF41T-0300803008DU |
3V DC |
0.8A |
3V DC |
0.8A |
4.8VA |
|
|
SF41T-0300706006DU |
3V DC |
0.7A |
6V DC |
0.6A |
5.7VA |
|
|
SF41T-0500612003DU |
5V DC |
0.6A |
12V DC |
0.3A |
6.6VA |
|
|
SF41T-0500412005DU |
5V DC |
0.4A |
12V DC |
0.5A |
8VA |
|
|
SF41T-0900412003DU |
9V DC |
0.4A |
12V DC |
0.3A |
7.2VA |
|
 |
 |
 |
 |
 |
 |
