EI-41

00title405a

LINEAR ADAPTOR
WALLMOUNT - DUAL OUTPUT
EI 41 AC TO AC ADAPTOR (US 2 PIN)
Input:120V AC 60Hz

ELECTRICAL SPECIFICATION
INPUT		OUTPUT
Input Voltage	120VAC	Output Voltage	S1:1-19V AC, S2:1-19V AC
Input Frequency	60Hz	Output Tolerance (Load)	5%
		Output Current	S1:0.1-0.8A, S2:0.1-0.8A
		Output Watt	15.3VA max

GENERAL SPECIFICATION
Temperatures		Humidity
Operating Temperatures	-10 to +30^oC	Operating Humidity	10 to 90% RH
Storage Temperatures	-10 to +70^oC	Storage Humidity	5 to 95% RH
Hi-Pot Test		Safety	Compliance With
Primary to Core	1800VAC, one second	UL/CUL	UL 1310/ CAN/CSA C22.2 No.223
Primary to Secondary	1800VAC, one second	UL/CUL	UL 1310/ CAN/CSA C22.2 No.223

OUTPUT SPECIFICATION

AC to AC (DUAL Output) Adaptor
The options of the dual output is limited to each output value ( The value need to less than the max of volt and amp)
Maximum Value	Model No	Output (Secondary 1)		Output (Secondary 2)		S1 + S2
Maximum Value	Model No	Volt(max)	Amp(max)	Volt(max)	Amp(max)	VA (max)
x = a	SF41-aaaYYaaaYYAU	5V AC	0.8A	5V AC	0.8A	8VA
x = b	SF41-bbbYYbbbYYAU	7V AC	0.7A	7V AC	0.7A	9.8VA
x = c	SF41-cccYYcccYYAU	10V AC	0.6A	10V AC	0.6A	12VA
x = d	SF41-dddYYdddYYAU	14V AC	0.5A	14V AC	0.5A	14VA
x = e	SF41-eeeYYeeeYYAU	19V AC	0.4A	19V AC	0.4A	15.2VA
For Example
Model No		Output (Secondary 1)		Output (Secondary 2)		S1 + S2
		Volt	Amp	Volt	Amp	VA
SF41-0300805008AU		3V AC	0.8A	5V AC	0.8A	6.4VA
SF41-0300506004AU		3V AC	0.5A	6V AC	0.4A	3.9VA
SF41-0500812005AU		5V AC	0.8A	12V AC	0.5A	10VA
SF41-0600706007AU		6V AC	0.7A	6V AC	0.7A	8.4VA
SF41-0750614004AU		7.5V AC	0.6A	14V AC	0.4A	10.1VA
SF41-1900319004AU		19V AC	0.3A	19V AC	0.4A	13.3VA

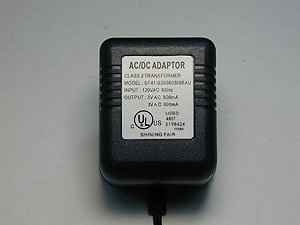

01-US-DUAL-AC-EI41-A-P-W

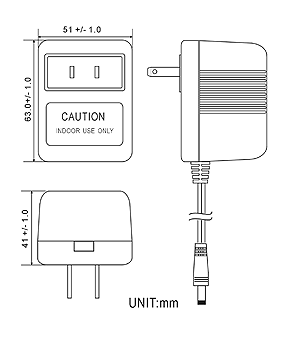

01-US-DUAL-AC-EI41-A-DIM-W

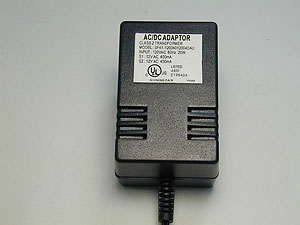

02-US-DUAL-AC-EI41-B-P-W

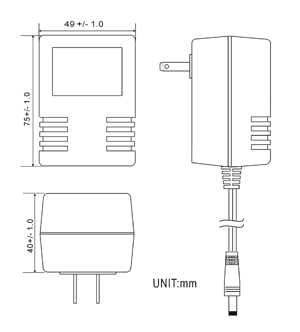

02-US-AC-EI41-B-TYPE-DIM-W

A-TYPE

B-TYPE
