DC/DC CONVERTER
WIDE INPUT RANGE - 2:1
WI SERIES
|
1.5W-2W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT |
EFF |
ISOLATION |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WIS-0505 |
4.5-9 |
5 |
300 |
429 |
40 |
70 |
1000 |
|
WIS-0509 |
4.5-9 |
9 |
200 |
500 |
40 |
72 |
1000 |
|
WIS-0512 |
4.5-9 |
12 |
150 |
500 |
40 |
72 |
1000 |
|
WIS-0515 |
4.5-9 |
15 |
120 |
500 |
40 |
72 |
1000 |
|
WIS-1205 |
9-18 |
5 |
400 |
222 |
20 |
75 |
1000 |
|
WIS-1209 |
9-18 |
9 |
222 |
225 |
20 |
74 |
1000 |
|
WIS-1212 |
9-18 |
12 |
168 |
213 |
20 |
78 |
1000 |
|
WIS-1215 |
9-18 |
15 |
133 |
213 |
20 |
78 |
1000 |
|
WIS-2405 |
18-36 |
5 |
400 |
112 |
12 |
74 |
1000 |
|
WIS-2409 |
18-36 |
9 |
222 |
111 |
13 |
75 |
1000 |
|
WIS-2412 |
18-36 |
12 |
168 |
107 |
11 |
78 |
1000 |
|
WIS-2415 |
18-36 |
15 |
133 |
107 |
11 |
78 |
1000 |
|
WIS-4805 |
36-72 |
5 |
400 |
56 |
8 |
74 |
1000 |
|
WIS-4809 |
36-72 |
9 |
222 |
55 |
8 |
75 |
1000 |
|
WIS-4812 |
36-72 |
12 |
168 |
54 |
8 |
78 |
1000 |
|
WIS-4815 |
36-72 |
15 |
133 |
54 |
8 |
78 |
1000 |
|
Mechanical Characteristics |
|
|---|---|
|
Length:31.8mm |
Height: 14.5mm |
|
Width: 8.6mm |
Weight: 6.6g Typ |
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-25oC to +71oC |
Isolation Capacitance |
80pF max |
|
Storage Temperature |
-55oC to +125oC |
Switching Frequency |
75 KHz min |
|
Humidity |
95% max |
MTBF |
>1,000,000 Hours at 25oC |
|
Cooling |
Free-Air Convection |
Case Material |
Non-Conductive Plastic |
|
Efficiency |
70% min |
Potting Material |
Epoxy(UL94-V0) |
|
Isolation Voltage |
1000 VDC min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
Radiated Emissions |
EN55022 Class A |
|
ELECTRICAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Input Voltage Range |
2:1 Input Range |
Load Regulation |
+/-0.2% max |
|
Input Filter |
Pi Network |
Minimum Load |
10% of Full Load |
|
Protection |
Fuse Recommended |
Short Circuit Protection |
Continuous |
|
Voltage Setpoint Accuracy |
+/-2% max |
Short Circuit Restart |
Automatic |
|
Temperature Coefficient |
+/-0.03%/oC |
Overload Protection |
180% Typ |
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Transient Response |
200uS max |
|
Line Regulation |
+/-0.2% max |
|
|

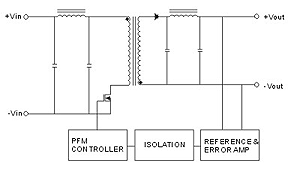

SIMPLIFIED SCHEMATIC

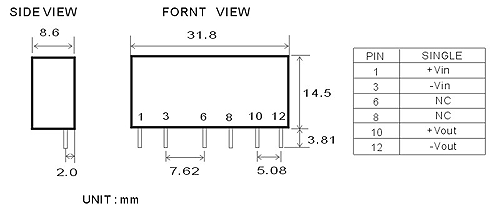

MECHANICAL DIMENSIONS &

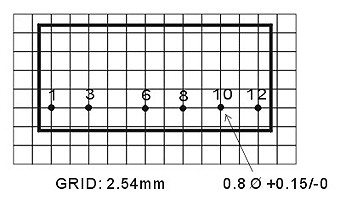

RECOMMENDED FOOTPRINT DETAILS
OUTPUT SPECIFICATIONS
 |
 |
 |
 |
 |
 |
