Mechanical Characteristics |
|
|---|---|
|
Length:50.8mm |
Height: 21mm |
|
Width: 50.8mm |
Weight: 110g Typ |
OUTPUT SPECIFICATIONS
DC/DC CONVERTER
WIDE INPUT RANGE - 2:1
WKB SERIES

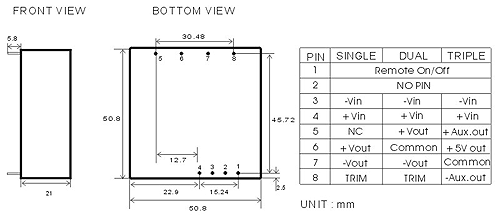

MECHANICAL DIMENSIONS &
RECOMMENDED FOOTPRINT DETAILS
SIMPLIFIED SCHEMATIC
|
ELECTRICAL SPECIFICATIONS |
||||||
|---|---|---|---|---|---|---|
|
Input Voltage Range |
2:1 or 4:1 Input Range |
Line Regulation |
|
|||
|
Input Filter |
Pi Network |
|
Single |
+/-0.2% max |
||
|
Protection |
Fuse Recommended |
Dual |
+/-0.2% max |
|||
|
Voltage Setpoint Accuracy |
|
Triple |
+/-1.0% max |
|||
|
|
Single Output |
|
+/-2% max |
Load Regulation |
|
|
|
Dual Output |
|
+/-2% max |
|
Single |
+/-0.2% max |
|
|
Triple |
5V |
+/-2% max |
Dual |
+/-0.2% max |
||
|
|
12V/15V |
+/-5% max |
Triple |
+/-5.0% max |
||
|
Over Voltage Protection |
Built-in |
Minimum Load |
10% of Full Load |
|||
|
Temperature Coefficient |
+/-0.03%/oC |
Short Circuit Protection |
Continuous |
|||
|
Ripple & Noise(20MHz BW) |
100mVp-p max |
Short Circuit Restart |
Automatic |
|||
|
|
|
External Trim Adj. Range |
+/-10% |
|||
|
Overload Protection |
180% Typ |
|||||
|
Transient Response |
500uS max |
|||||
|
GENERAL SPECIFICATIONS |
|||
|---|---|---|---|
|
Operating Temperature |
-40oC to +71oC |
Switching Frequency |
100 KHz min |
|
Storage Temperature |
-55oC to +100oC |
MTBF |
>700,000 Hours at 25oC |
|
Humidity |
95% max |
Weight |
110g Typ |
|
Cooling |
Free-Air Convection |
Case Material |
Six-Sided Shield Case |
|
Efficiency |
75% min |
Potting Material |
Epoxy(UL94-V0) |
|
Isolation Voltage |
1000 VDC min |
Conducted Emissions |
EN55022 Class A |
|
Isolation Resistance |
109 ohms min |
Radiated Emissions |
EN55022 Class A |
|
Isolation Capacitance |
1200pF max |
|
|
|
2:1 20W DUAL OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WKBD-1205 |
9-18 |
+/-5 |
+/-2000 |
2083 |
30 |
80 |
1000 |
|
WKBD-1212 |
9-18 |
+/-12 |
+/-833 |
2033 |
30 |
82 |
1000 |
|
WKBD-1215 |
9-18 |
+/-15 |
+/-667 |
2033 |
28 |
82 |
1000 |
|
WKBD-2405 |
18-36 |
+/-5 |
+/-2000 |
1041 |
18 |
80 |
1000 |
|
WKBD-2412 |
18-36 |
+/-12 |
+/-833 |
980 |
18 |
85 |
1000 |
|
WKBD-2415 |
18-36 |
+/-15 |
+/-667 |
980 |
18 |
85 |
1000 |
|
WKBD-4805 |
36-72 |
+/-5 |
+/-2000 |
521 |
10 |
80 |
1000 |
|
WKBD-4812 |
36-72 |
+/-12 |
+/-833 |
508 |
9 |
82 |
1000 |
|
WKBD-4815 |
36-72 |
+/-15 |
+/-667 |
508 |
9 |
82 |
1000 |
|
2:1 20W SINGLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WKBS-1205 |
9-18 |
5 |
4000 |
2083 |
30 |
80 |
1000 |
|
WKBS-1209 |
9-18 |
9 |
2222 |
2062 |
30 |
81 |
1000 |
|
WKBS-1212 |
9-18 |
12 |
1667 |
2058 |
30 |
81 |
1000 |
|
WKBS-1215 |
9-18 |
15 |
1333 |
2058 |
28 |
81 |
1000 |
|
WKBS-2403.3 |
18-36 |
3.3 |
6000 |
1041 |
18 |
80 |
1000 |
|
WKBS-2405 |
18-36 |
5 |
4000 |
1041 |
18 |
80 |
1000 |
|
WKBS-2409 |
18-36 |
9 |
2222 |
960 |
18 |
87 |
1000 |
|
WKBS-2412 |
18-36 |
12 |
1667 |
980 |
18 |
85 |
1000 |
|
WKBS-2415 |
18-36 |
15 |
1333 |
980 |
18 |
85 |
1000 |
|
WKBS-4803.3 |
36-72 |
3.3 |
6000 |
523 |
10 |
80 |
1000 |
|
WKBS-4805 |
36-72 |
5 |
4000 |
521 |
10 |
80 |
1000 |
|
WKBS-4809 |
36-72 |
9 |
2222 |
515 |
10 |
81 |
1000 |
|
WKBS-4812 |
36-72 |
12 |
1667 |
508 |
9 |
82 |
1000 |
|
WKBS-4815 |
36-72 |
15 |
1333 |
508 |
9 |
82 |
1000 |
|
2:1 20W TRIPLE OUTPUT |
|||||||
|---|---|---|---|---|---|---|---|
|
Model No |
INPUT VOLTAGE |
OUTPUT VOLTAGE |
OUTPUT CURRENT |
INPUT CURRENT(mA) |
EFF |
ISOLATION(VDC) |
|
|
FULL LOAD |
NO LOAD |
||||||
|
WKBT-12/0512 |
9-18 |
+5, +/-12 |
2500, +/-310 |
2083 |
30 |
80 |
1000 |
|
WKBT-12/0515 |
9-18 |
+5, +/-15 |
2500, +/-250 |
2083 |
30 |
80 |
1000 |
|
WKBT-24/0512 |
18-36 |
+5, +/-12 |
2500, +/-310 |
1016 |
18 |
82 |
1000 |
|
WKBT-24/0515 |
18-36 |
+5, +/-15 |
2500, +/-250 |
1016 |
18 |
82 |
1000 |
|
WKBT-48/0512 |
36-72 |
+5, +/-12 |
2500, +/-310 |
508 |
9 |
82 |
1000 |
|
WKBT-48/0515 |
36-72 |
+5, +/-15 |
2500, +/-250 |
508 |
9 |
82 |
1000 |
 |
 |
 |
 |
 |
 |
